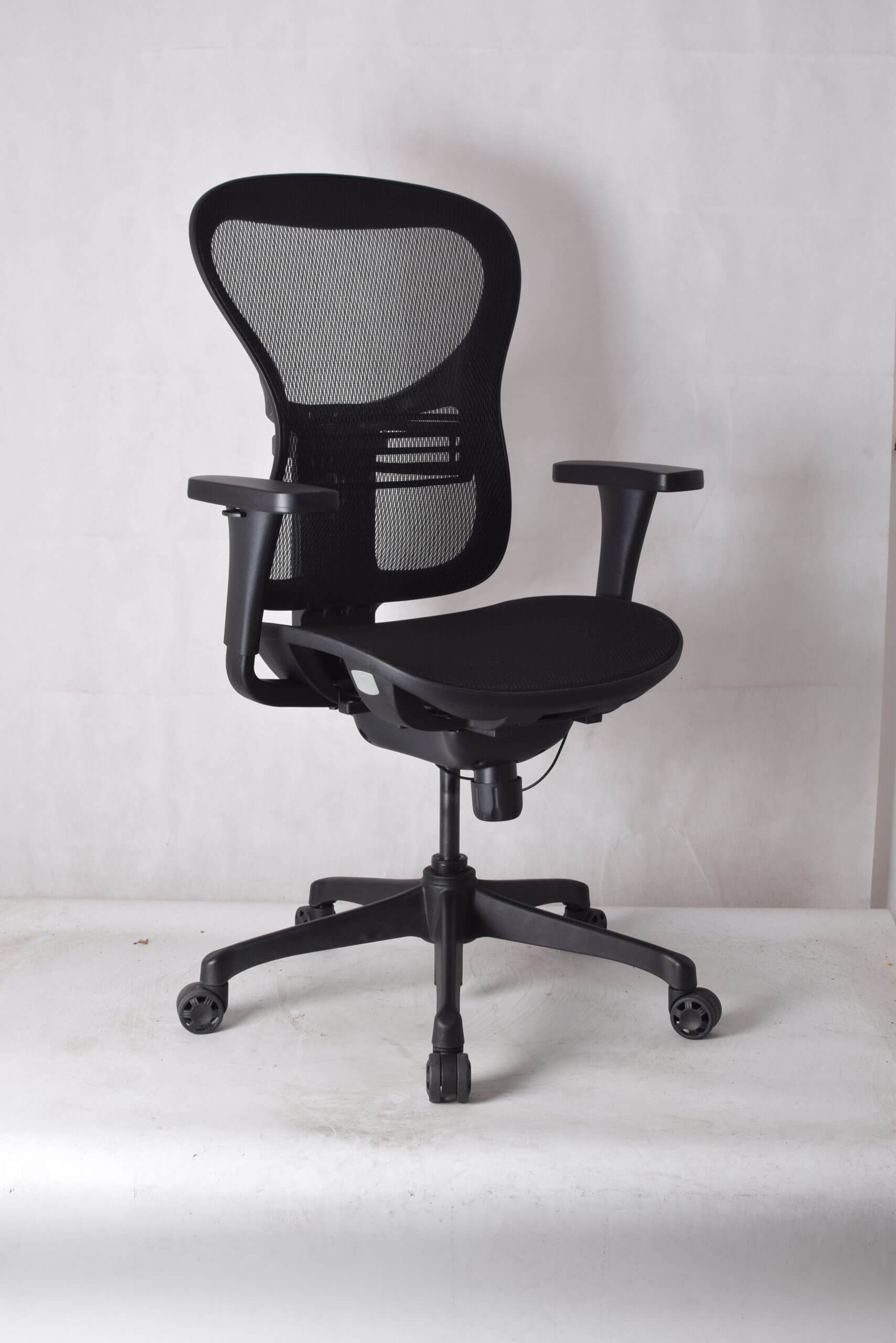

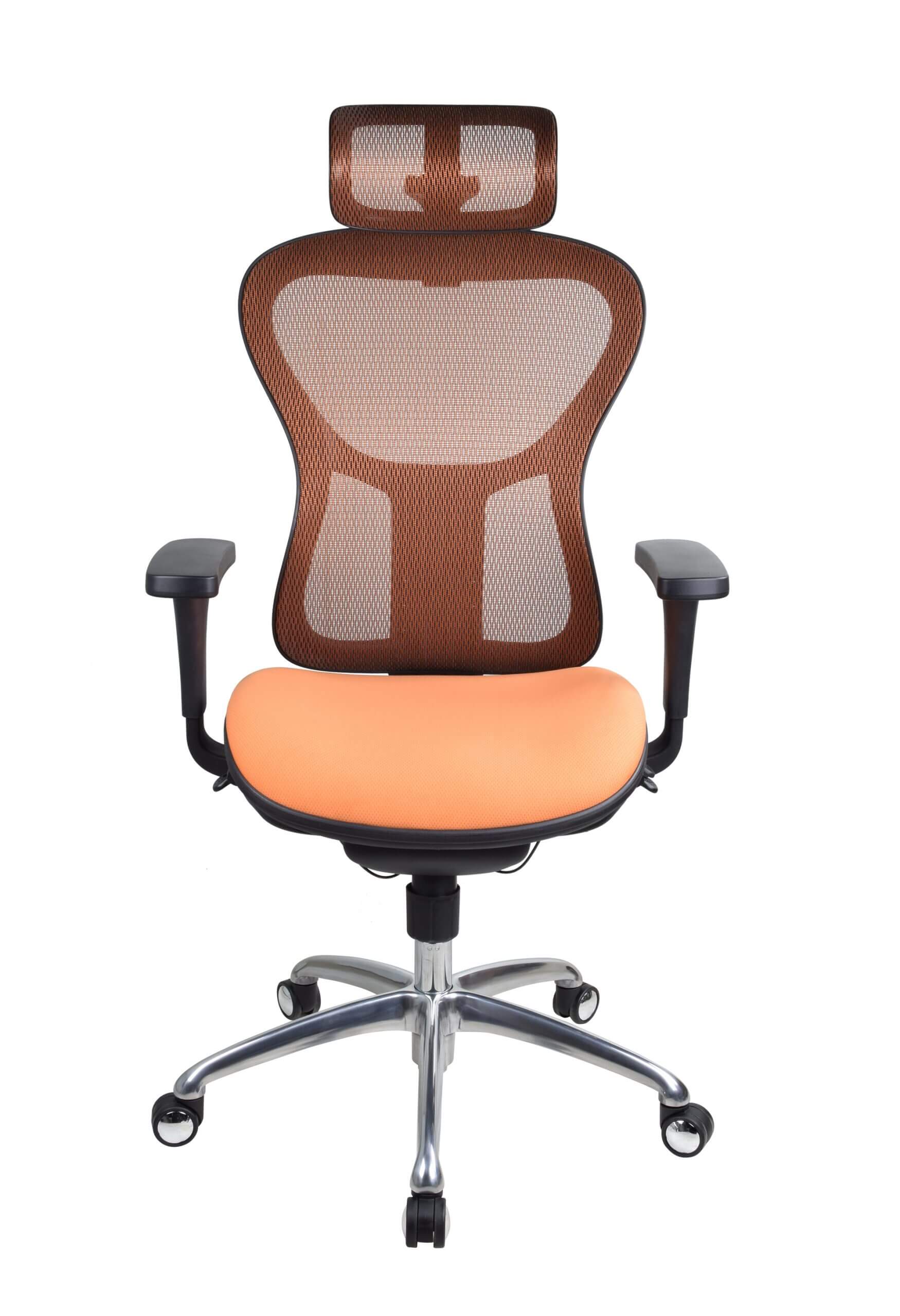

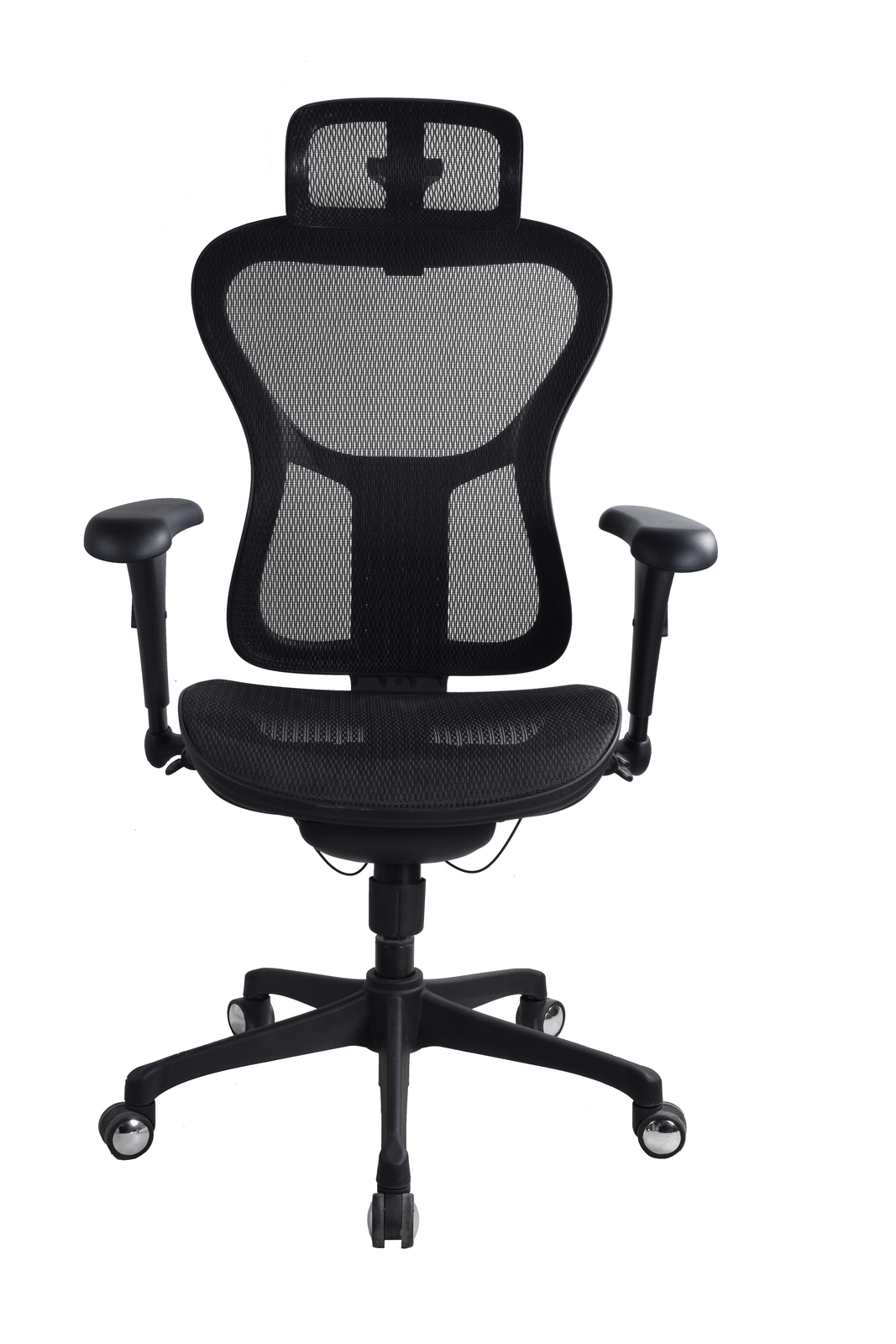

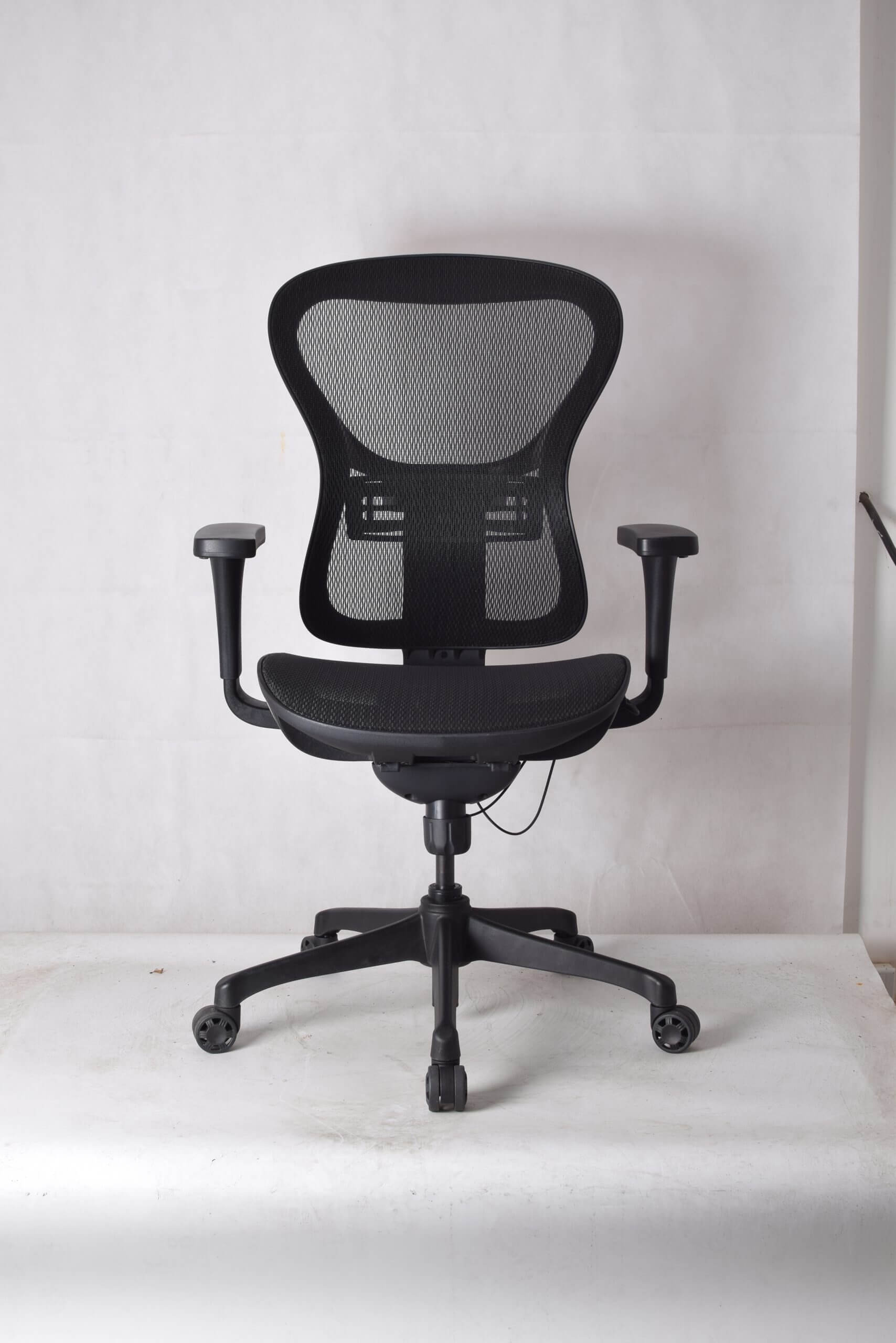

Diana

* Dimension: 665W x 635D x 1065~1155H (mm)
* All Functions are Control-by-cable
* Passed BIFMA x5.1 Standard
* 3D Armrest (Adjustable Height, Pivot, and backward/forwards)
(Option for 2D Armrest)
* Pneumatic Seat Height Adjustment
* Adjustable Seat Depth (Seat Slider)
* Adjustable Back Height
* Synchronized Tilt with Back Stop in 3 Positions
* Tilt Tension Control
* 5-Star Nylon Base (Option for 5-Star Aluminum Base)
* Option for Headrest
* Upper Material Selections of Mesh, Fabric, and Leather
Colors above are for reference only. Please contact sales agent for actual color samples if needed.

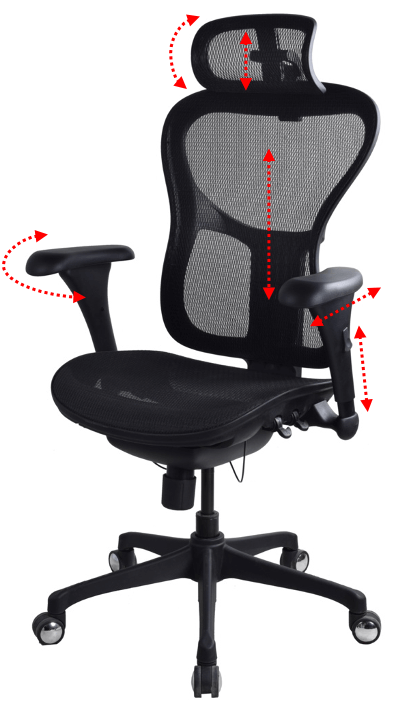

  • All functions are control-by-cable
  • Optional 3D Headrest with/without Coat Hanger

 3D headrest is adjustable for 1150mm in height and for 5 stages in a total 90  range

  • 3D Armrest  (Adjustable Height and Pivot Arm pad) (Option for 2D Armrest)

 3D Armrest is adjustable for 60mm in height. The arm pads are adjustable for 25  swiveling in/out and 55mm backward/ forward.

Top with soft-touch pad to provide users more precise support in a natural position.

  • Adjustable Back Height

Back Height is adjustable for 65mm.

  • Adjustable Seat Depth

Adjustable Seat Height for 50mm.

  • Pneumatic Seat Height Adjustment

Adjustable Seat Height for 90mm.

  • Backrest tilt in 3 Lockable Positions

Backrest and seat tilt in unison. Back tilts more than seat and is tension adjustable. Backrest tilt angle with 90 -100 -110  three lockable positions.

  • Tilt Tension Control

Enables users to adjust the tension of the chair’s back depending on user’s body weight.

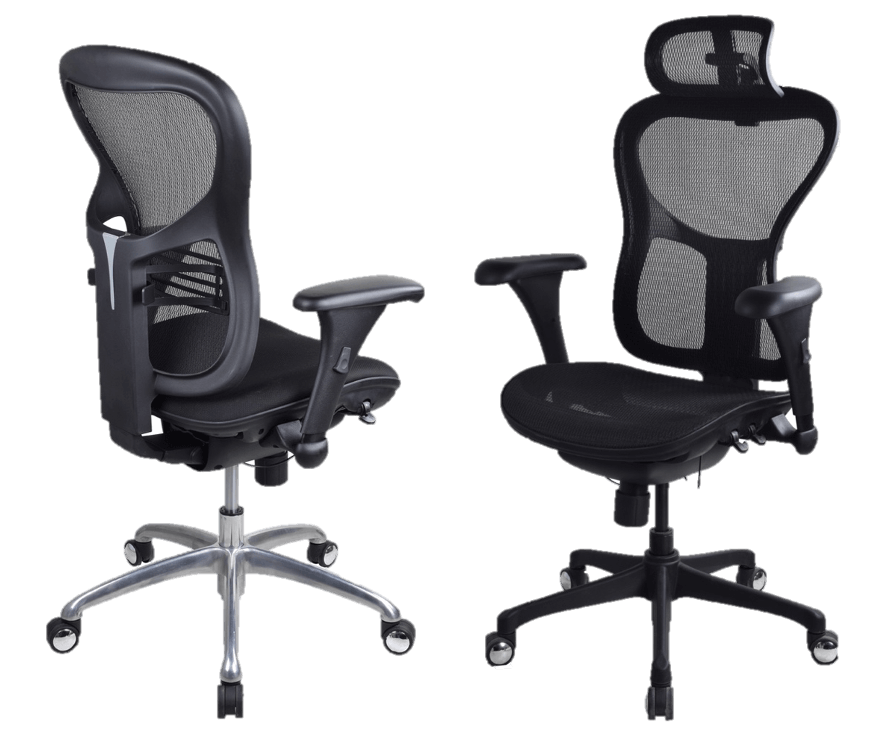

  • 5-Star Aluminum Base (Option for 5-Star Nylon Base)

Aluminum 5-star base (350mm) designed for stability and endurance. Comes with Aluminum Polished or Nylon options.

  • Upper Material Selection of Mesh, Fabric, and Leather
